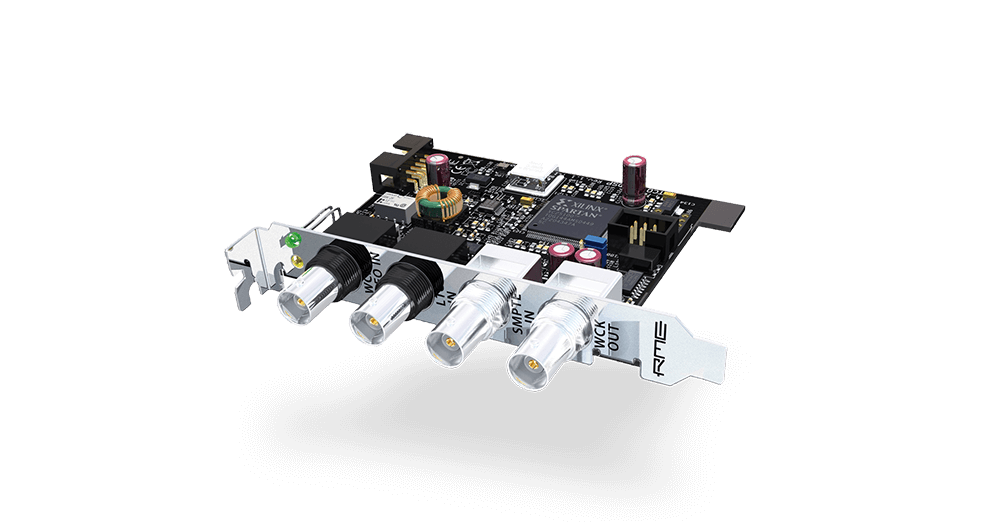

All inputs and outputs are simultaneously operational, even SPDIF (phono) and AES/EBU (XLR). Of course TotalMix, the unsurpassed flexible routing mixer and SteadyClock FS, RME’s sensational clock technology with maximum jitter suppression of external clock signals, are on board too. HDSPe AIO Pro also supports the optional TCO for synchronization to timecode (LTC/video).
The new HDSPe AIO Pro is based on the reference processors AK5572 and AK4490 derived from the high-end AD/DA converter ADI-2 Pro. The analog input range also uses the circuit design of the ADI-2 Pro (+24 / +19 / +13 / +4 dBu). In addition, RME has enhanced the outputs with additional reference levels (balanced: +24 / +19 / +13 / +4 dBu; unbalanced: +19 / +13 / +4 / -2 dBu) which allows even more versatile integration into audio systems. The HDSPe AIO Pro features a dedicated attenuator in the output section, resulting in an increased signal-to-noise ratio and a lower output impedance at low reference levels.
A further highlight of the HDSPe AIO Pro is the newly developed, powerful and extremely transparent headphone output. Thanks to mute relay including switchable output levels, there is no unwanted crackling noise at the headphone output and the analog XLR and RCA outputs when switching on the computer.

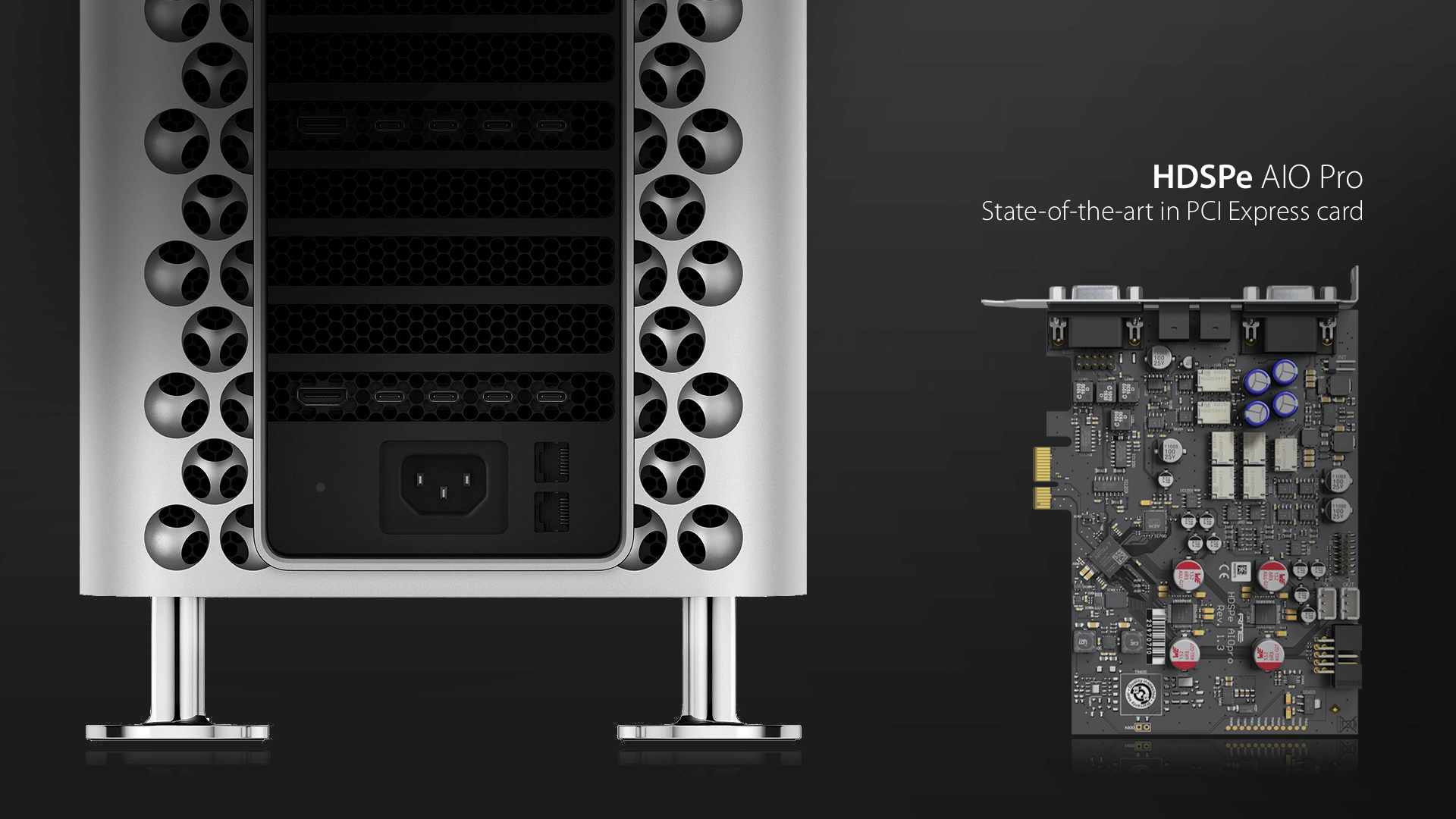

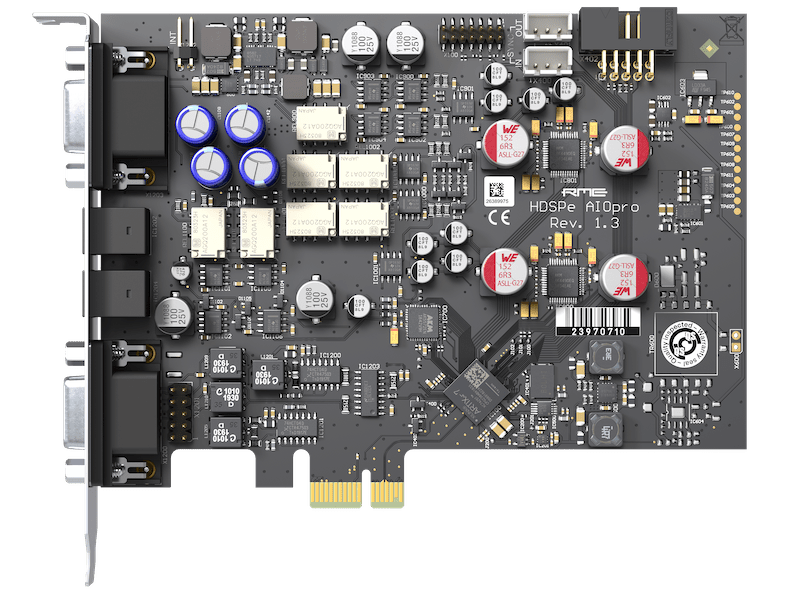

HDSPe AIO Pro -The completely reworked successor of the popular HDSPe AIO.
TotalMix FX
An unique capability to create as many independent submixes as output channels available turned it into the most flexible and powerful mixer of its kind.
TotalMix FX includes a complete effects system, which not only adds flexibility to the recording chain, but also makes latency saddled software solutions obsolete.
It can completely replace an external mixer, enabling the creation of multiple latency-free monitor mixes with EQ, Dynamics, Reverb and Delay for any outputs incl. main monitors and headphone mixes for musicians.
Learn moreSteadyClock FS
Excellent Performance, Redefined.
The SteadyClock technology of RME's latest products guarantees an excellent performance in all clock modes. Its highly efficient jitter suppression refreshes and cleans up any clock signal.
A few small improvements in the latest FS version, like even more efficient filtering, and a design based on a super low jitter reference clock.
Find Out More
Features
- Balanced* stereo analog in- and output, 24-bit/192kHz
- All analog I/Os capable of 192 kHz, constant number of available channels
- 1 ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
- 1 SPDIF digital I/O, 192 kHz-capable
- 1 AES/EBU digital I/O, 192 kHz-capable
- 1 High Power Headphone Output, separate DA-converter and playback device
- 1 MIDI I/O with 16 channels of hi-speed MIDI via breakout cable
- DIGICheck, RME’s unique metering- and analysing tool
- TotalMix FX: 760 channel Mixer with 42 bit internal resolution
- Native PCI Express – no PCI to PCI Express bridge used
- Outputs with Mute Relais
- +24 dBu I/O Levels
* The HDSPe AIO Pro ships in a basic version with analog RCA/phono breakout cables (headphone: TRS jack). Therefore all analog I/Os are unbalanced. An analog XLR breakout cable is available as option (headphone: Neutrik TRS locking jack), turning analog into balanced mode.
