Developed by RME, Digiface AVB is a glance into the future of audio network technology. The device uses AVB, an open protocol developed by the IEEE, to transfer up to 256 channels of audio between PC and audio network. An additional headphone output allows high quality monitoring.
Exploring new Ways to transport Audio

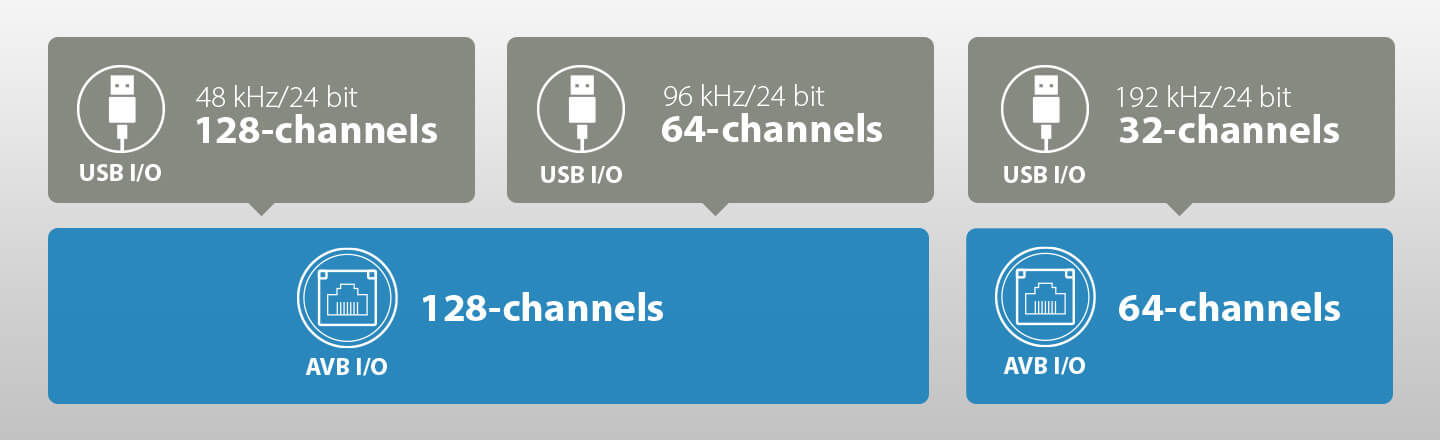

RME’s Digiface AVB showcases how audio can be transferred from a Mac or PC into the network and back using the AVB protocol stack. It allows to send up to 128 audio channels for record and playback at 48 kHz / 24 bit sampling frequency and 64 channels at 96 kHz (128 channels I/O AVB) or 32 channels at 192 kHz with quad speed (64 channels I/O AVB).
Channels are organized in streams of configurable size from 2 to 32 channels, which enables connections to all available AVB audio devices on the market (comprehensive compatibility tests pending). The accompanying software package comprises an AVDECC controller, which provides essential functions to discover all AVB devices in a network and manage connections of incoming and outgoing streams. Basic monitoring capabilities are built in. TotalMix FX enables comprehensive routing and monitoring options.

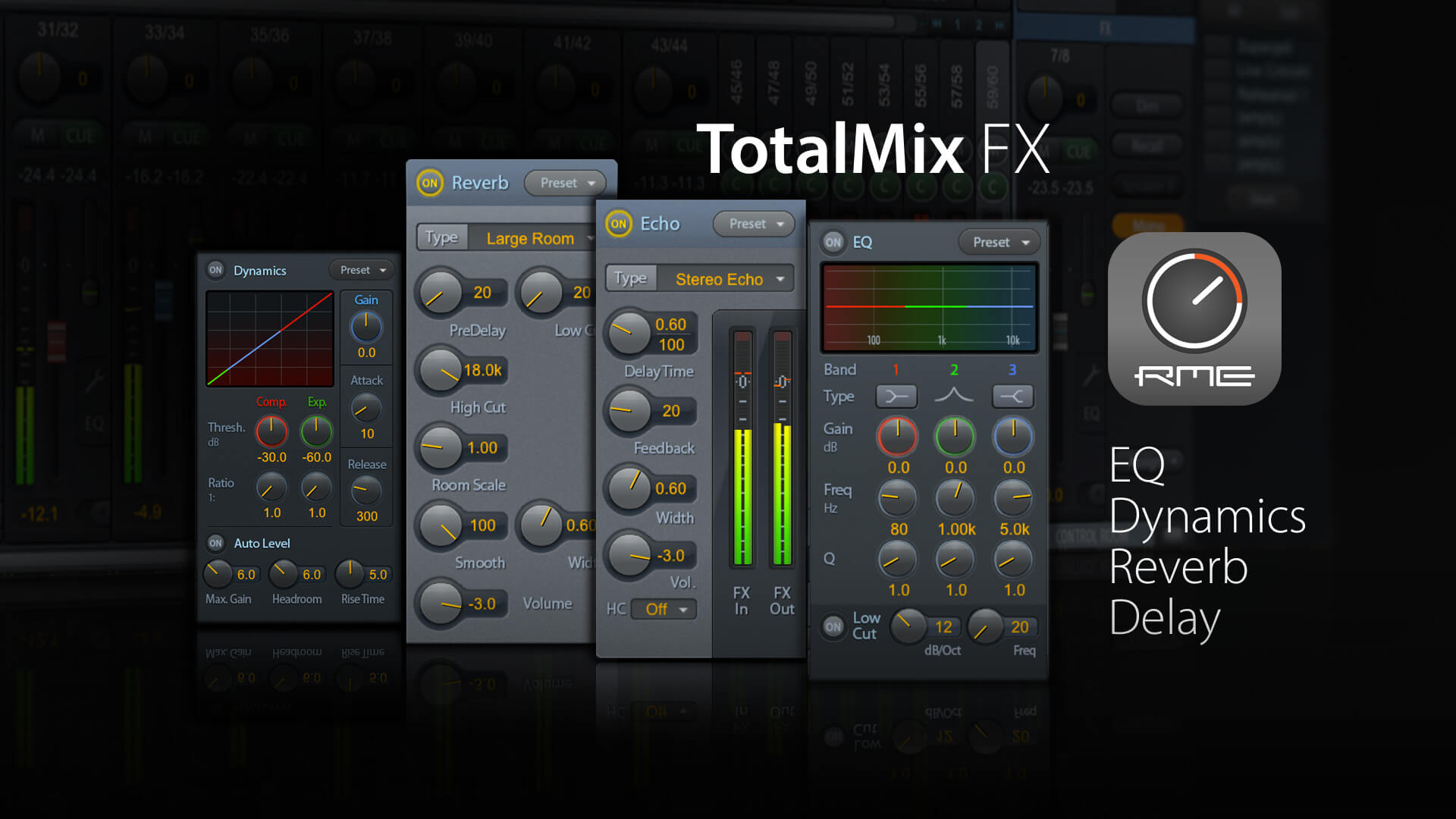

TotalMix FX
An unique capability to create as many independent submixes as output channels available turned it into the most flexible and powerful mixer of its kind.
TotalMix FX includes a complete effects system, which not only adds flexibility to the recording chain, but also makes latency saddled software solutions obsolete.
It can completely replace an external mixer, enabling the creation of multiple latency-free monitor mixes with EQ, Dynamics, Reverb and Delay for any outputs incl. main monitors and headphone mixes for musicians.
Learn moreThe Digiface Series includes a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and much more. The Digiface Series does not support DSP based effects (FX) like EQ or reverb.
Additionally RME’s latest software, TotalMix Remote, enhances the power of RME interfaces by enabling remote control via iOS, PC or Mac. With a straightforward set up process — simply enter the IP address of the computer you would like to control with TotalMix Remote and get going — users can quickly adjust any aspect of TotalMix FX on a host system while walking around the studio with their tablet, or from a control room located elsewhere in the facility.
Features
- RME MADIface series driver with support for WDM, ASIO and multiple interfaces
- 128 channels 48 kHz/24 bit record/playback, 128 channels I/O AVB
- 64 channels 96 kHz/24 bit record/playback, 128 channels I/O AVB
- 32 channels 192 kHz/24 bit record/playback, 64 channels I/O AVB
- Buffer sizes/latencies from 32 up to 8192 samples selectable
- Gigabit ethernet port, 100 Mbit/s compatible
- Outgoing network latency selectable in steps of 8 ns
- Word clock input and output
- Clock modes slave and master

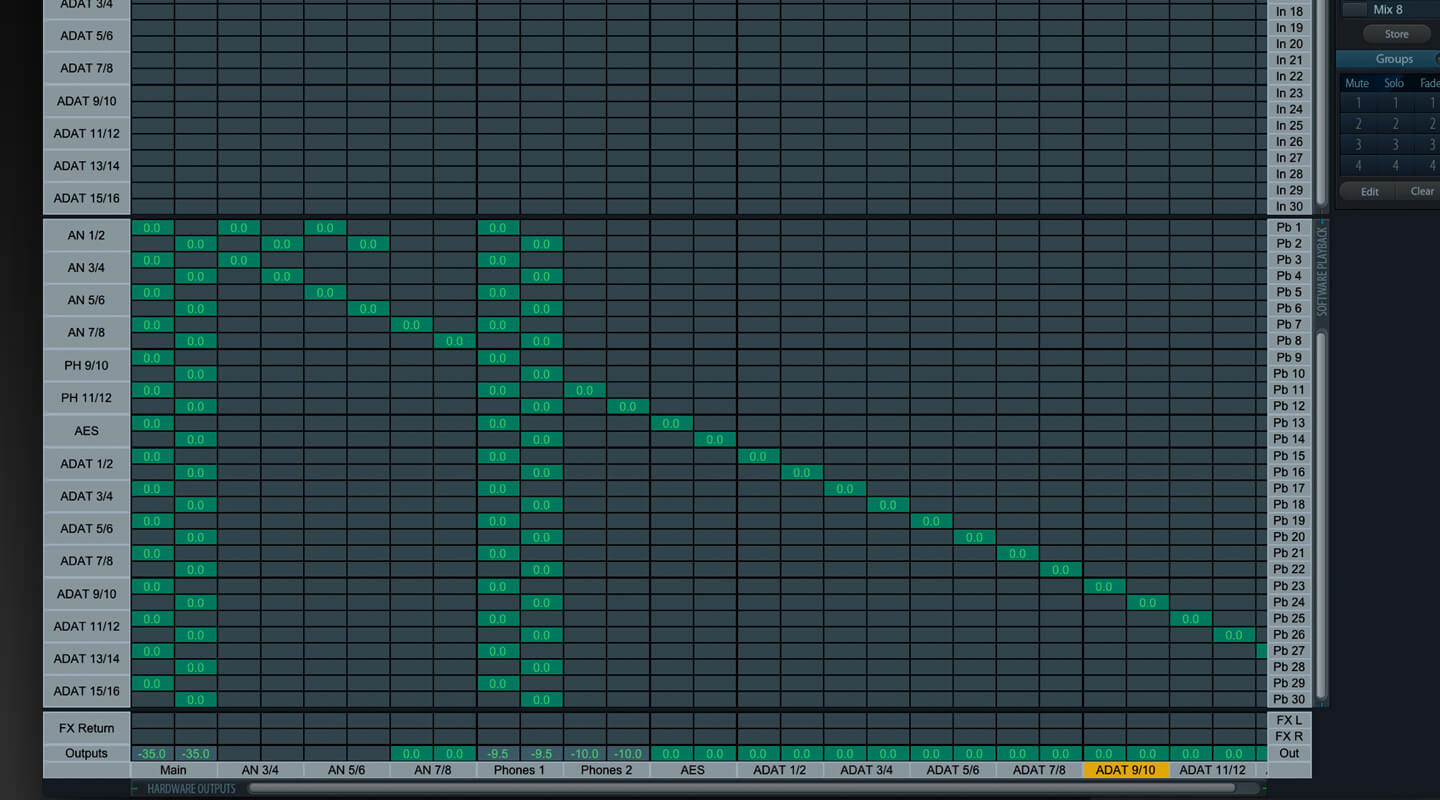

- TotalMix for latency-free submixes and perfect ASIO Direct Monitoring
- TotalMix: 2048 channel mixer with 46 bit internal resolution
- Analog/Line headphone output, separate output for independent submix
- DIGICheck DSP: Level meter in hardware, peak- and RMS calculation
- USB error analysis, displayed in the Settings dialog
- High compatibility to existing AVB devices
- IEEE 1722.1 and Milan compatible
